J.A.K. AUDIO S MIX 32
S MIX 32
THE BIG CONSOLE SOUND
For the modern DAW based studio.
NOTE: Please specify your country in the message section in the contact form at the bottom of this page.
NEW: Different front panel colors will be available: Medium yellow, (as the pictures), Light grey (like the classic ssl x-rack), Medium Dark grey, with serigraphy in black or white.
MIKROSUM S MIX32 is the first affordable Summing mixer with features only seen in the most expensive units. The BLEND circuit allows easy parallel processing of your mix bus with a bit of width. The Lundahl Transformers gives you that final punchy vibe so wanted. Stereo image Depth/Width, and a 200khz frequency response makes mixing and panning decisions easier. Signal present/peak leds and vumeters allows you control levels while you mix the best tracks. ¡A real mix solver!.
¡TAKE CONTROL OF YOUR MIX!
Mixing a reverb tail, applying EQ, Level, panning instruments in the stereo field, applying effects, hearing the details, are fundamental aspects to achieve a good mix. Often the limitations of DAWS, or audio interfaces with only a single stereo output, can make mixing decisions difficult.
The MIKROSUM S MIX32, allows mixing up to 32 channels, with its 200khz frequency response, giving a deep breath to your Groups/Stems and individual instruments, so you can take the best decisions for your mix.
MIX BUS TOPOLOGY
The MIKROSUM S MIX 32, makes extensive use of Balanced differential summing amplifier topology and bucket summing, to maximize the headroom and reduce noise.
INSERT BUS PROCESSING
The BLEND circuit allows you to apply paralell processing to the mix bus. It is a pre-fader process. The insert send/retrun jacks are balanced TRS, and half normalled. Thus inserting a Jack in the send/output allows you to record the mix dry, without interrupting the signal path.
METERING
Four leds give you information about a signal being present at the outputs of the final summing stage,and peak, thus allowing control for saturation of the mixbus before apllying insert processing. Two round vumeters and two peak leds give you information of the output levels.
FUNCTIONAL FEATURES
- 16/32 BALANCED INPUT CHANNELS IN DB25 FORMAT.
- 2 BALANCED 1/4 JACK INPUT CHANNELS FOR EXPANSION.
- 2 XLR OUTPUTS FOR MIX OUTPUT.
- 2 XLR OUTPUTS FOR MONITOR OUT INTO AN EXTERNAL MONITOR CONTROLLER.
- BALANCED INSERT SND-RETURN FOR MASTER OUTPUT PROCESSING.
- STEREO SIGNAL PRESENT / PEAK LED AT THE OUTPUT OF THE SUMMING AMPLIFIERS.
- SWITCHABLE BLEND CIRCUIT WITH WET/DRY CONTROL OF THE MASTER INSERT.
- CHANNELS 1 -4 SWITCHABLE TO MONO WITHOUT LOOSING CHANNEL COUNT.
- OUTPUT LUNDAHL LL2811 TRANSFORMER, AND ELECTRONICALLY BALANCED LINE DRIVER.
- STEREO ANALOG VUMETERS WITH PEAK LEDS.
AUDIO SPECIFICATIONS
- INPUT IMPEDANCE 20k ohm balanced
- OUTPUT IMPEDANCE 100 ohm balanced
- MAX INPUT LEVEL +26dbu
- MAX OUTPUT LEVEL +26dbu
- THD TRANSFORMER OUTPUT (5 HARMONICS) 0,0017%
- NOISE TRANSFORMER OUTPUT -95,32dbu
- FREQUENCY RESPONSE TRANSFORMER OUTPUT 20hz-20khz +0/-0,32db
- THD LINE DRIVER OUTPUT (5 HARMONICS) 0,0014%
- NOISE LINE DRIVER OUTPUT -97,34dbu
- FREQUENCY RESPONSE LINE DRIVER OUTPUT 20hz-20khz +0/-0,22db
- CROSSTALK -83,35dbu @ 0dbu 20hz-20khz
- DIMENSIONS AND WEIGHT 1U rack 483mm W/232mm D/44mm H
- POWER CONSUMPTION 30VA @ 50HZ 230-240AC INPUT
- FUSES 2 x 500ma slow fuses size 5x20mm
- 3 YEAR WARRANTY COVERING FABRICATION DEFECTS.
FRONT PANEL DETAILS
FROM LEFT TO RIGHT:
1. Signal present and Summing amps output level indicator. Indicates, level at the output summing amps, before the insert SEND/RETURN amplifiers.
2. 15mm diameter blend fader + blend switch in/out + green led indicator of active blend.
3. MONO switch with green led. When engaged, (Switch in),sets channels 1 to 4 in Mono. Rest of the channels (5-8) remain in stereo. When not activated, all channels are stereo.
4. OUTPUT TYPE :
Transformer output (Lundahl LL2811), and electronically balanced Line driver output.
5. BIG OUTPUT FADER VOLUME KNOB
A 28mm diameter knob adjusts the output volume.
The fader amplifier can give 10db of gain. To this gain should be added the 6 db of the line driver output and the driver circuit of the transformers.
As the mix and monitor xlr connectors are linked, the monitor level should be adjusted with an external monitor controller.
6. Mix output Peak Level leds L&R.
7. A pair of 34mm round vumeters indicate the Mix output level.
REAR PANEL DETAILS
FROM LEFT TO RIGHT:IEC CONNECTOR WITH FUSES, 230V AC INPUT. 2X500MA FAST FUSES.TOP JACKS: R&L EXPANSION INPUTS
BOTTOM JACKS: SEND/RETURN JACKS FOR R&L CHANNELS (HALF NORMALLED BALANCED CONECTION).THE SEND JACKS WORK ALSO AS DIRECT SUM OUTPUTS (BALANCED OUTPUTS).4 DB25 CONNECTORS:THESE ARE THE SUMMING INPUTS, IN TASCAM /PROTOOLS FORMAT: EACH CONNECTOR HOLDS 4 STEREO CHANNELS: 1L 2R, 3L 4R, ....7L 8R.
PICTURE BELOW:

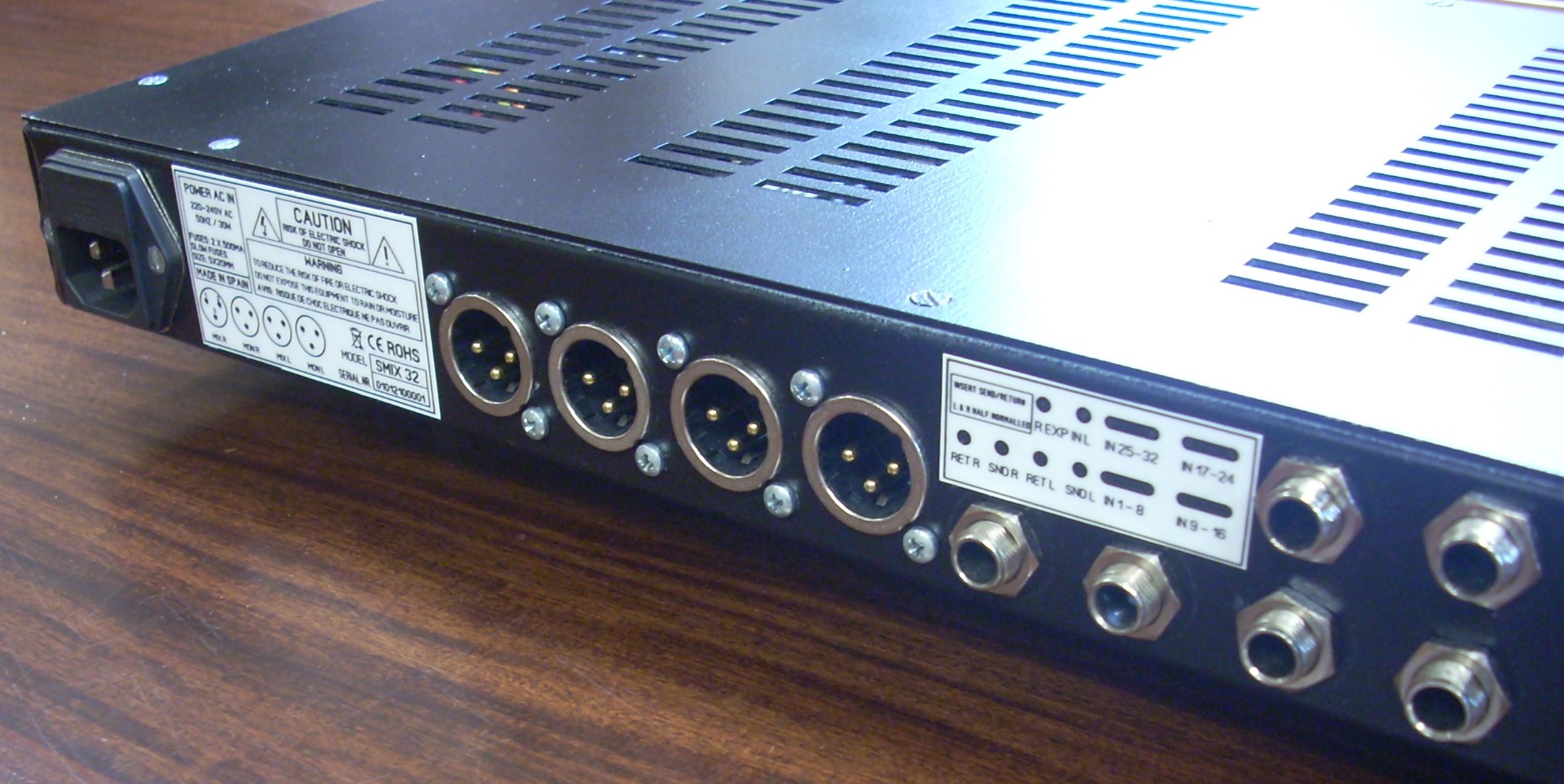

You can see the four db25 balanced connectors that hold the 32 summing inputs. Summing inputs 1 to 4 can be switched to MONO operation. Channels 5 to 8 remain in stereo mode.
ANGLED VIEW...
AVAILABILITY: This product is made on order. Conditions are: 50% in advance, and 50% before shipping. Build time: 1,5 Months depending mainly on Audio Transformers availability at the time of ordering.
You can contact us for more information, by mail or filling the form below.
¡¡We are here to help you!!
mail: comercial@podium.es
